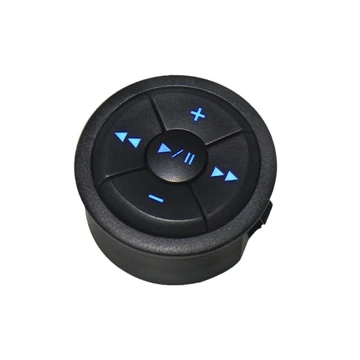

SNA1 the Navigation pushbutton switches integrated with LED SNA1 五向導航按鍵開關內建5顆內建LED按鍵開關，可以獨立控制LED燈。
We provide Laser Marking service
Switch rating:50mA,12VDC
Contact Resistance:100m Ohm Max.(initial)
Silent/mute or tactile feeling. Panel mount snap-in type recommend panel cutting dimension 34mm only suit for 1U rack.
through FFC(Flexible Flat Cable) easy connect to your main board.
total 12 pins it with commond anode for LED it makeyou easy to control individual LED.
新產品~ SNA1 五向鍵、方向鍵、導航鍵，按鈕開關模組
可提供客製雷射雕刻服務
開關額定電流電壓:50mA,12VDC
34mm面版安裝孔徑，適合1U機架型面版安裝。
輕觸或滑順觸感可供選擇。
FFC軟性排線以連接器與PCB控制板快速連接。
內建LED背光可獨立控制。
檔案下載：下載
