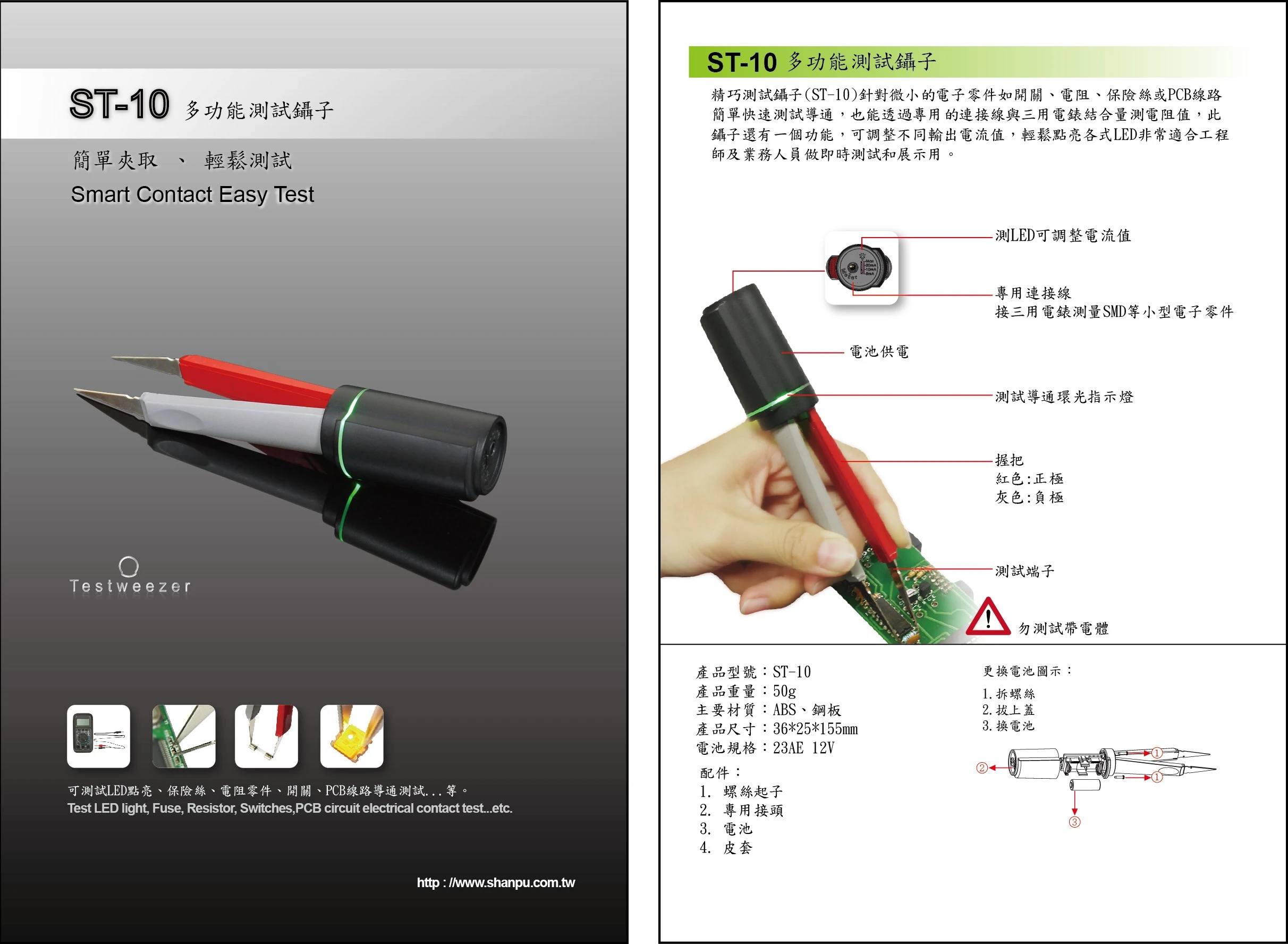

ST-10多功能SMD-LED測試鑷子

2011 new product ST-10 multi-function SMD test tweezer

Taiwan patent number: M413965

Single pieces clip with gold plate and soldered on PCB it make low contact resistance.

Ideal for checking continuity of non-energized components, fuses, switches, relays,wiring and circuit boards.

Main function:

1. switch LED ON。

You can check the LED work or fail, LED colo(u)r, check LED cathode and anode, the red sideisanode the gray side is cathode. On the back have slide switch you can select the LED forward current (5mA, 10mA or 20mA).

2.Machanical conductivity test.

Easy fast simple test Fuser fail or not, PCB circuit, switch contact, relay contact. If the mechanical conductive the ring have green light on.

3.Connect to digital multi-meter to be a SMD test tweezer.

Using enclosed cable connect to digital multi-meter to test SMD component such as resister.



2011 新產品 ST-10多功能SMD測試夾

2011最新創作 ST-10多功能SMD測試夾 已通過台灣專利 M413965

一體式鍍金夾片與PCB直接接合，阻抗低且耐用。



主要有三大功能:

1、點亮LED檢查LED好壞、顏色、正負極性方向。

內部可置放23A電電池供電，同時有開關可切換電流(5mA、10mA、20mA)測試不同電流需求LED，防止LED燒毀。測試夾紅色端為正極灰色端為負極，電亮LED後LED極性立即可判斷。

2、機械結構導通測試。

方便判斷保險絲有無燒毀、判斷PCB線路有無斷/短路、按鍵開關導通腳位、繼電器腳位，等導通測試。有導通時測試夾上光環會亮綠光表示導通，不亮表示不導通。

3、外接三用電錶測試SMD零件。

附連接線可與一般三用電錶連接，測試SMD小型零件(例如電阻)
