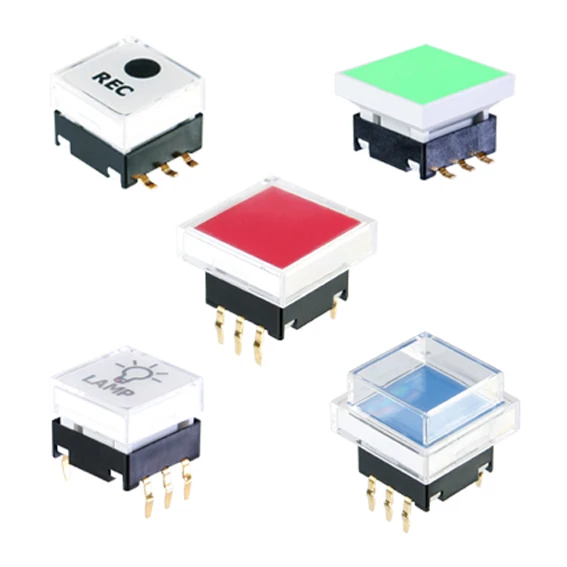

SPD 全彩LED 輕觸按鍵

規格/功能: General Specification/Function:

l      Circuit: Single Pole Single Through (SPST)

l      Rating:50mA @ 12VDC

l      Contact Resistance:100m Ohm Max(initial)

l      Insulation Resistance:100M Ohm Min

l      Operating Force:220gf(SMD) or 300 gf(Through hole)

l      Total Travel:0.3mm

l      Operating Life:1,000,000 Cycles Min.

l      Solder temperature:260 deg for 3 sec(wave)

l      Operating Temperature:-10 deg~+60 deg

l      Function: Momentary

l      迴路:SPST單輸入單輸出

l      開關額定電流電壓:50mA@12VDC

l      接觸阻抗:最大100微歐姆(初始值)

l      絕緣阻抗:100百萬歐姆

l      操作壓力:220gf(SMD) 或300gf(TH插板式)

l      總行程: 0.3mm

l      操作壽命:最少1,000,000次

l      焊錫溫度:波峰焊攝氏260度3秒

l      操作溫度:攝氏-10度~+60度

l      開關功能:無鎖

材料:Material:

l      Cover: Polycarbonate(PC)

l      Reflector:Polyamide(PA)

l      Base:LCP

l      Action Dome: Stainless steel with silver plating

l      Terminal: Phosphor bronze (PBS) with gold plating

l      LED:Top view LED

l      上蓋:PC

l      作動鈕:尼龍PA

l      開關底座:不鏽鋼

l      彈片:不鏽鋼鍍銀

l      開關/LED腳:磷青銅鍍金

l      LED:上方發光LED

SPD特色:Feature:

l      Low profile tactile switch total 8mm high.

l      Single, dual or RGB full colo(u)r LED.

l      Various outlooking cap combination.

l      Integrate with high brightness LED.

l      Independently control LED and Switch.
